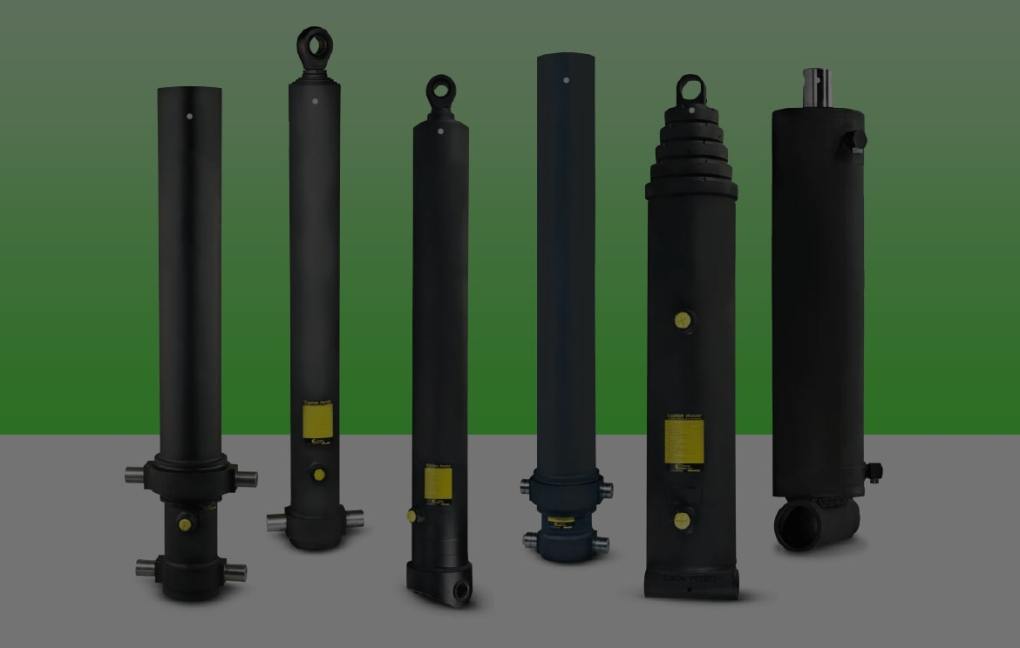

A Leading Global Manufacturer of Mobile Hydraulic Cylinders
Custom Hoists, Inc®. is a diversified global manufacturing company based in Hayesville, OH and a leading supplier of telescopic and single stage hydraulic cylinders. Since 1973 we have partnered with our customers to design cylinders that work in several robust applications.
Contact Us
Find your product
banner img
Are your needs unique?
No problem! Custom Hoists® specializes in custom manufacturing of products that meet your specific requirements and applications.
Begin Customization
Featured Products
series2500_2600_photo
2600 Series
- Exact Euro cylinder design
- 110/130/150/170/190mm (4.33-7.48") stage diameters
- Strokes up to 400"
- Single-piece (no welds) plungers
- Cascading umbrella wipers
- Self-bleeding design
- System pressures to 3,500 PSI
- Chrome plated stages optional
- Optional spherical bearing
series2500_2600_photo_1160x745
2500 Series
- Weighs less than most cylinders of similar design
- Chrome-plated LPA
- Optional self-aligning bearing
- Lifting capacity comparable to other brands
- Dual-lip wiper prevent contamination entry
- Fits a variety of dump body & trailer applications
- 2800 - 3500 PSI operating pressure
- Self-bleeding design
- State of the art u-cups
series3000_photo_1160x745
3000 Series
- 23% more lifting capacity
- Chrome-plated plungers
- Optional nitrided plungers
- Domestically manufactured and stocked for immediate shipment
- Oscillating trunnion collar reduces side loading
- O.D. sealed with state of the art u-cups
- Pin Ported
series4000_photo_1160x745
4000 Series
- Self-bleeding design
- Pre-loaded v-packing with a self-adjusting wave spring energizer or an energized Z seal package as an option
- Threaded headnuts for added strength and field seal adjustment
- Longer bearing length for stability
- Stock models inventoried at 5 warehouse locations throughout the U.S. for immediate needs
series5000_photo_1160x745
5000 Series
- Hybrid design utilizing large tube sizes with European look
- Single high performance u-cup seal with v-packing
- 'Z' seal option available
- Heavy duty wiper
- No seal adjustment needed
- Increased overlap between stages
- Snap-in retaining ring
- Chrome plating optional
