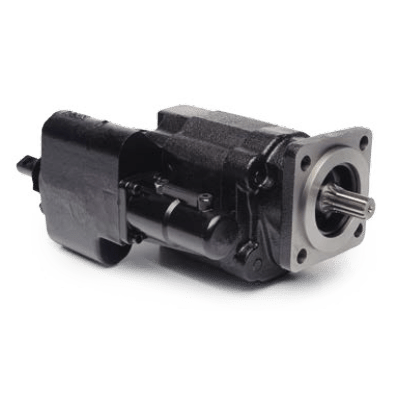

Economical C102 Pump Replacements
- Cast iron pump body
- Heavy duty roller bearings
- Left and Right hand rotation
- SAE “B” 4 bolt flange mounting
- High pressures up to 2250 psi
- Air and Manual shift
- Adjustable relief valve
- High pressure front seal
- Chrome steel valve spool
- 2 line or 3 line system installation
Filter by:
| Model/Part # | Description | Shaft | Gear | Inlet | Pressure & Return Port |
|---|---|---|---|---|---|
| CHPV102-LAS-25 | Air Shift– Left Hand Rotation | 7/8" 13 Tooth | 2.5" (6.2 cu in) | 1-1/4" NPT | 1" NPT |
| CHPV102-LMS-25 | Manual Shift– Left Hand Rotation | 7/8" 13 Tooth | 2.5" (6.2 cu in) | 1-1/4" NPT | 1" NPT |
| CHPV102-RAS-25 | Air Shift– Right Hand Rotation | 7/8" 13 Tooth | 2.5" (6.2 cu in) | 1-1/4" NPT | 1" NPT |
| CHPV102-RMS-25 | Manual Shift– Right Hand Rotation | 7/8" 13 Tooth | 2.5" (6.2 cu in) | 1-1/4" NPT | 1" NPT |
